Weather Forecasting using ARIMA & SARIMA Model
Introduction to AR and MA model
Learning Outcome
5
Know when to apply AR vs MA
4
Use ACF & PACF to identify models
3
Interpret AR(p) and MA(q) notation
2
Understand Moving Average (MA) models
1
Understand AutoRegressive (AR) models
Recall
Before learning AR & MA, recall previous topics:
What is Time Series Data
Concept of lag (past values)
What is correlation in time

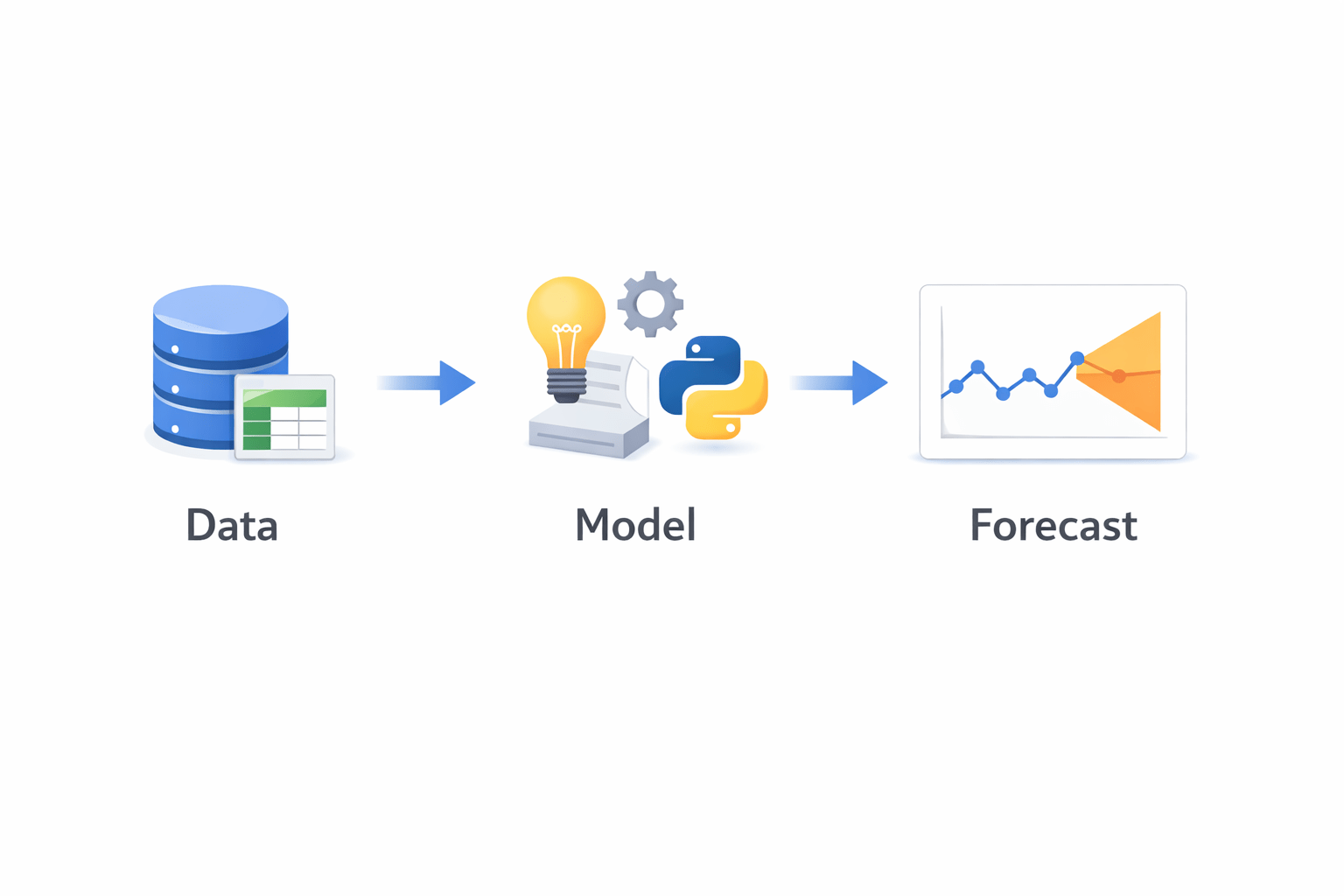

Basic forecasting idea
Hook Story

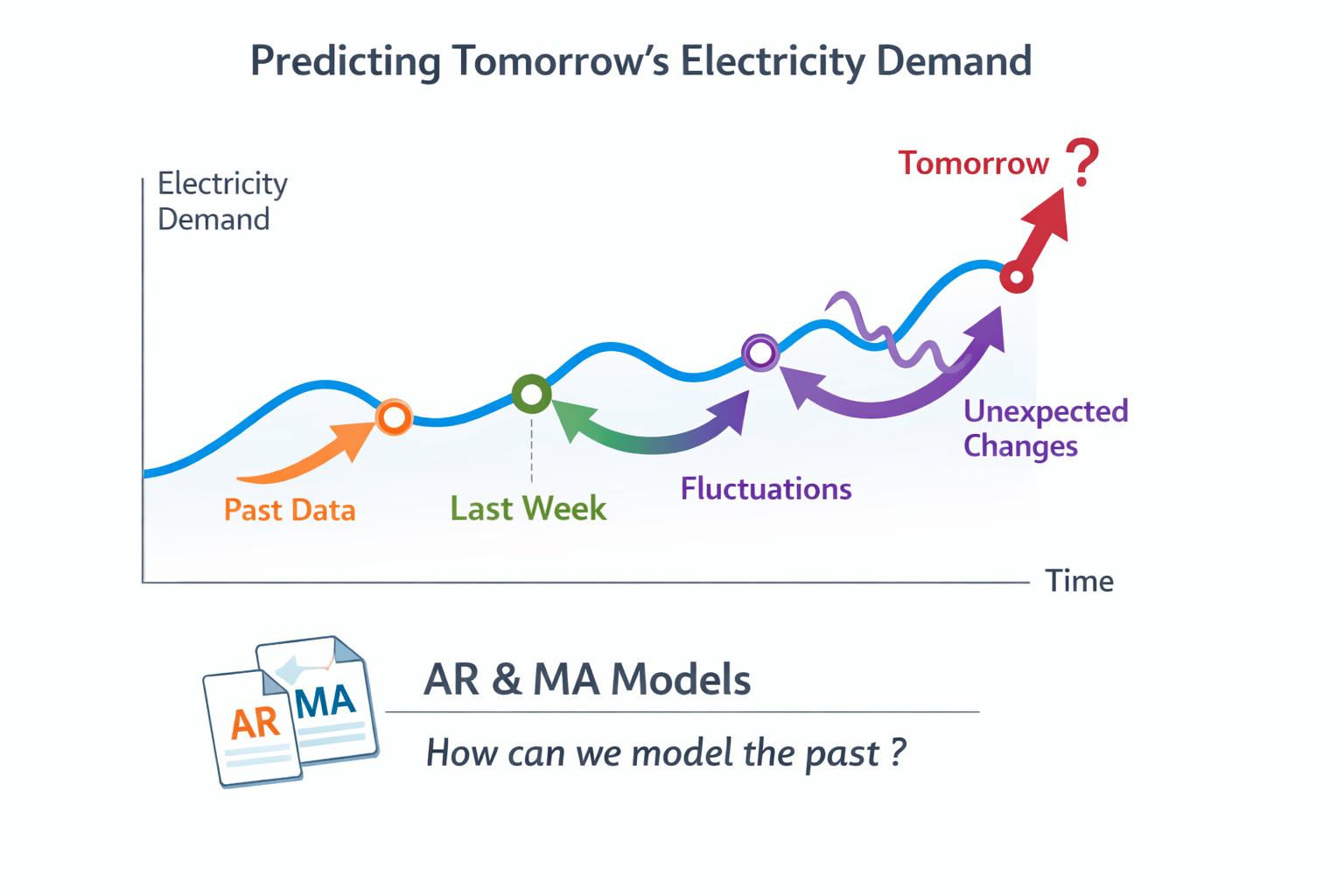

Imagine predicting tomorrow's electricity demand.
Demand depends on:
• Yesterday’s demand
• Last week’s trend
• Unexpected fluctuations
How do we model past influence mathematically?
AR and MA models solve this.

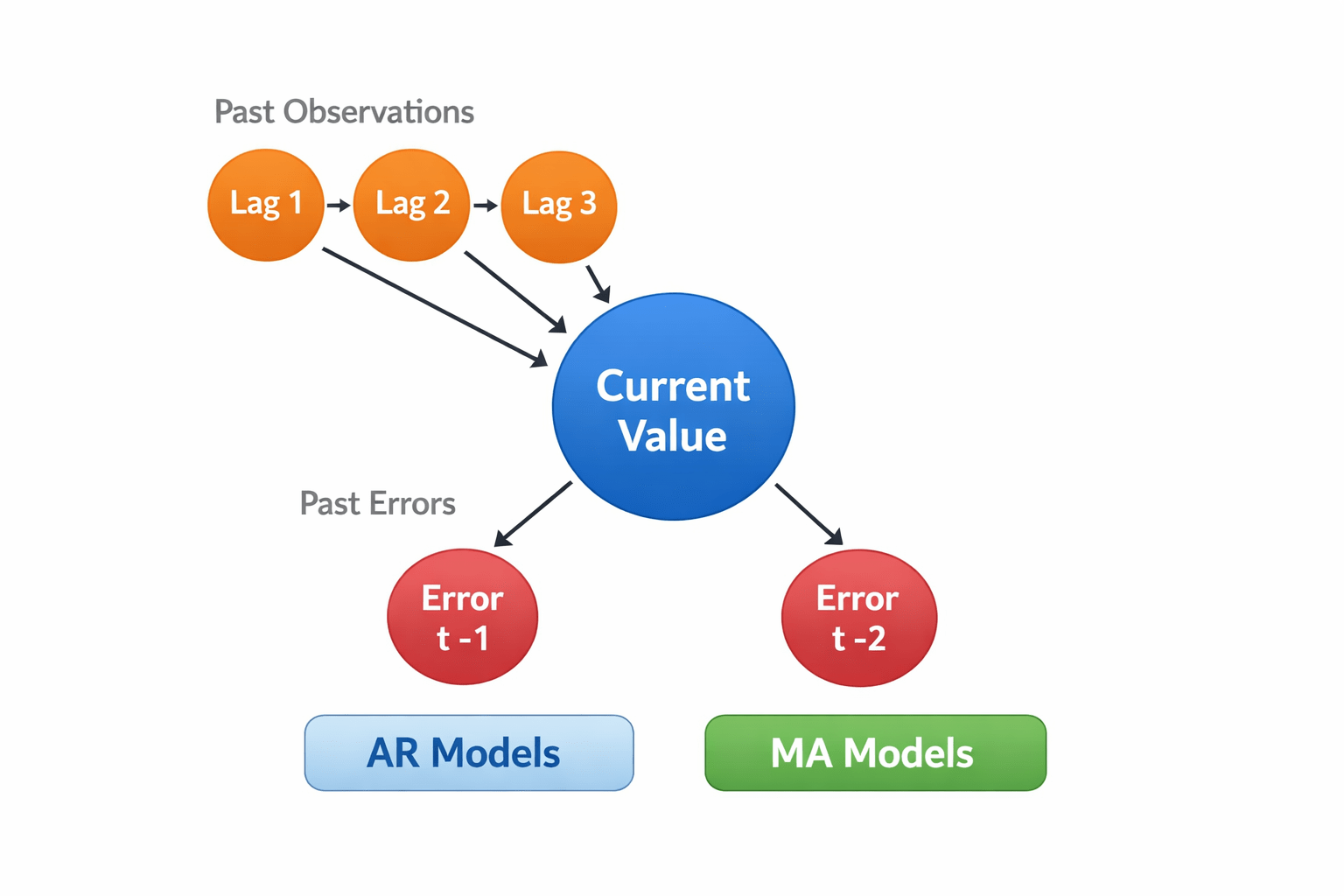

Transition from Analogy
Time series values are dependent
Time series values are dependent
Current value may depend on:
Past observations
Past errors
These relationships are modeled using:
AR Models
MA Models

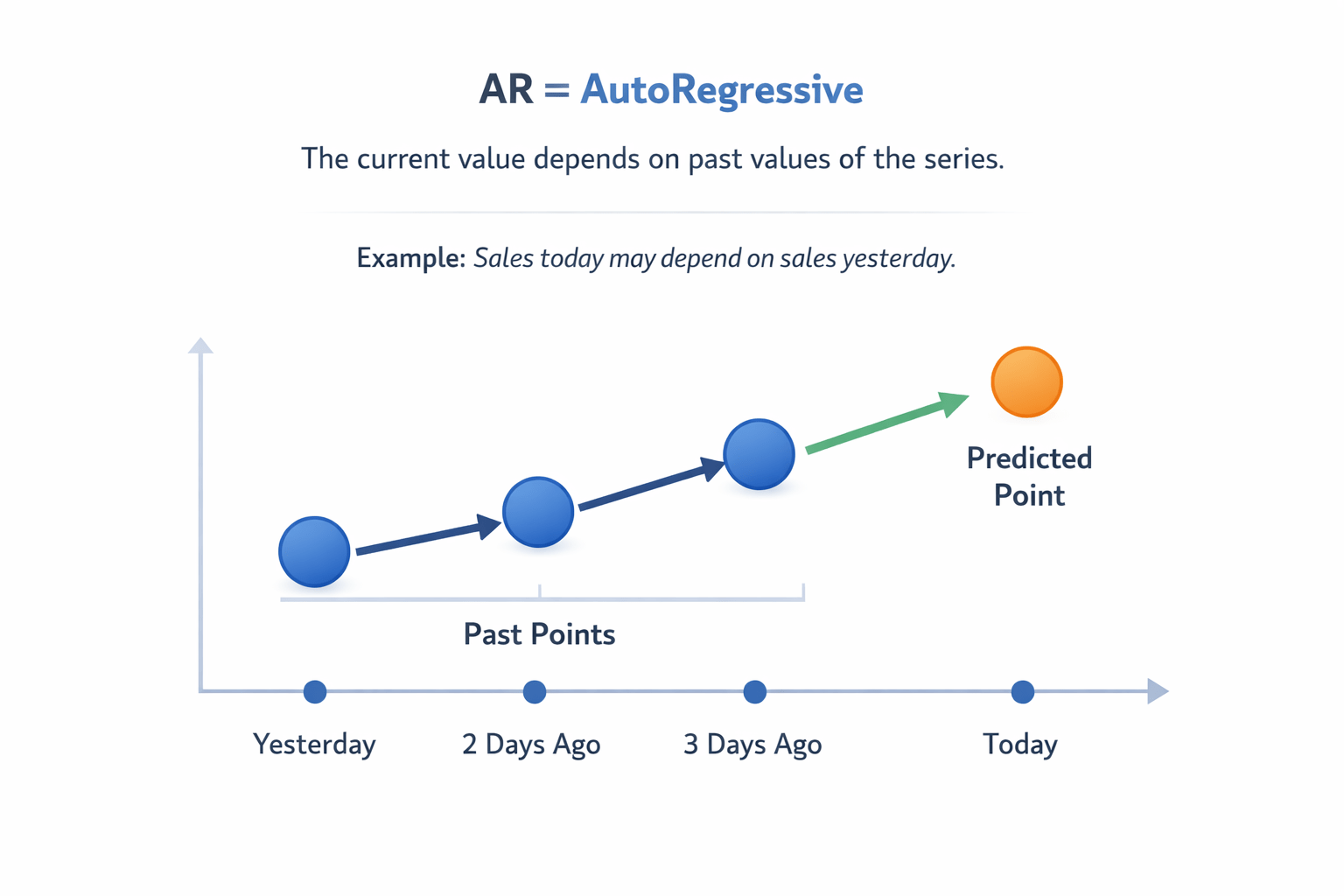

What is an AR Model?
AR = AutoRegressive:
The current value depends on past values of the series.
Example: Sales today may depend on sales yesterday.

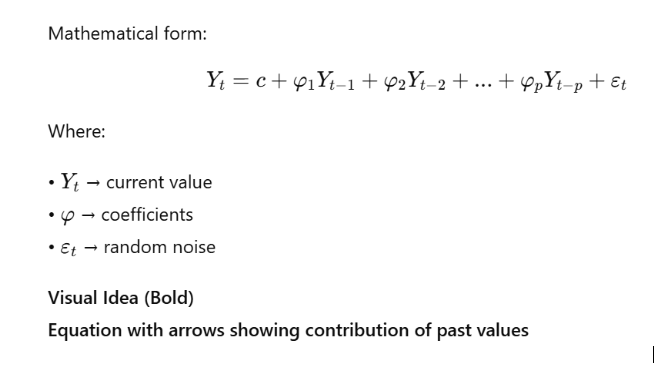

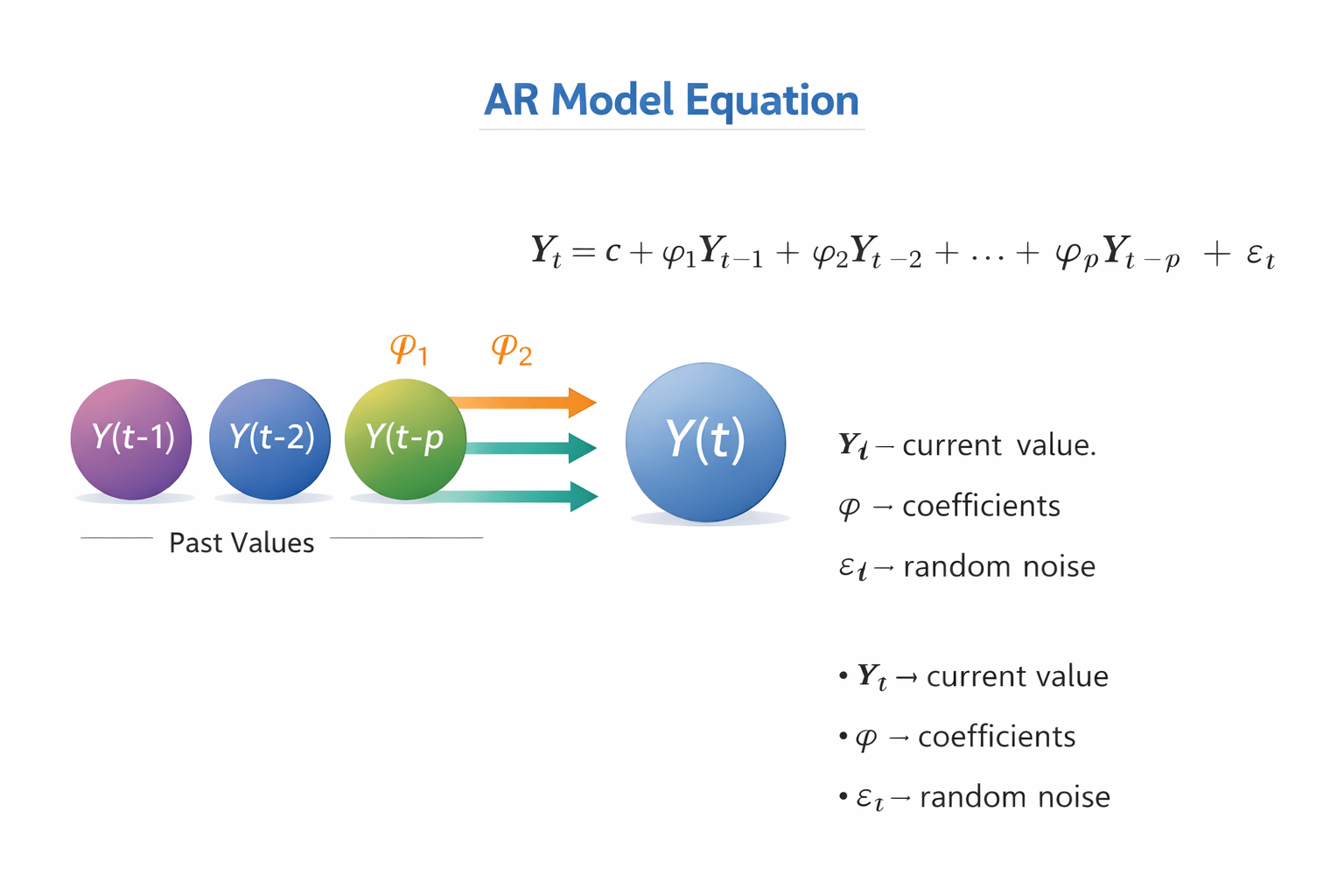

AR Model Equation

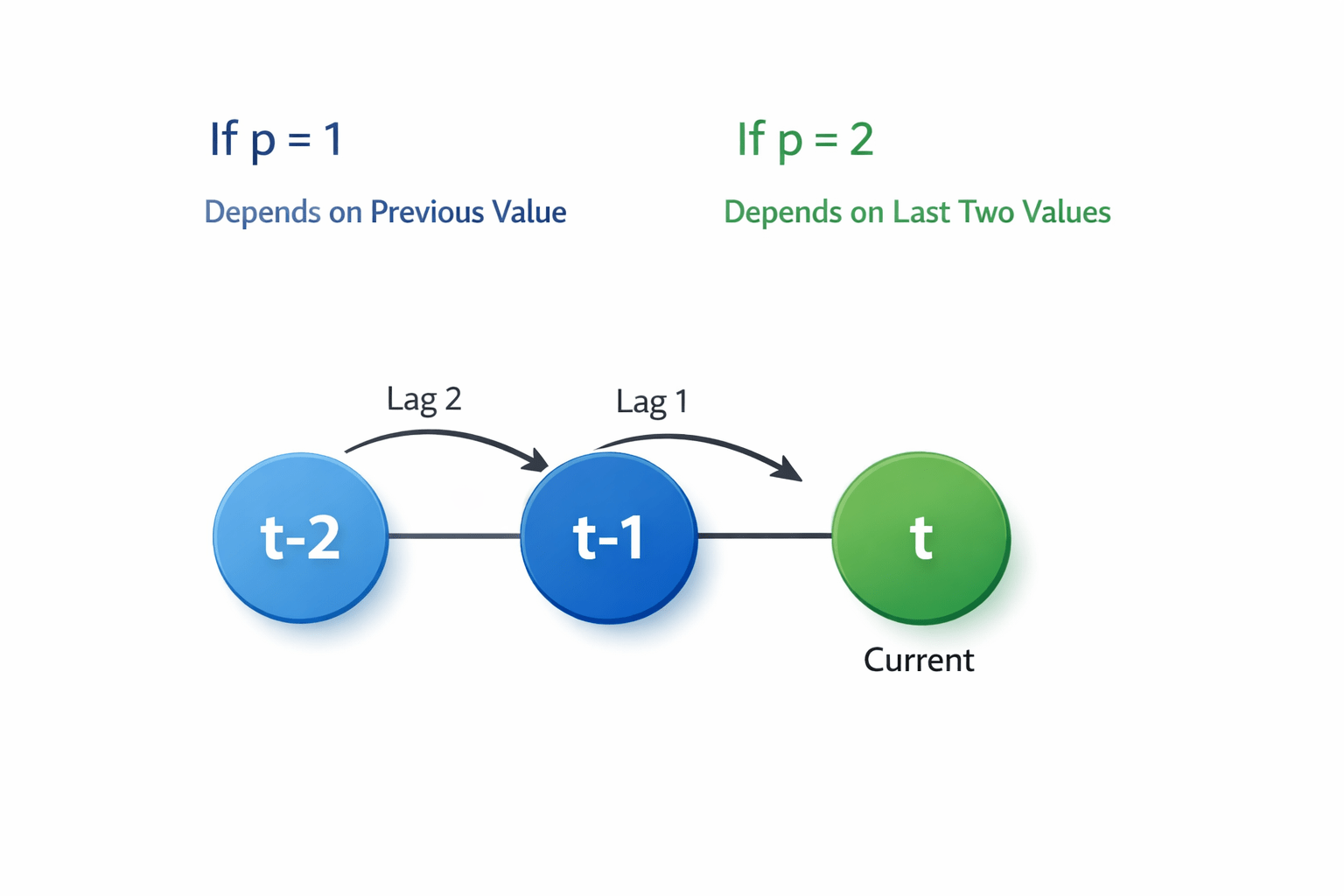

AR(p) Model Intuition
If p = 1
AR(1) → depends only on previous value
If p = 2
AR(2) → depends on last two observations

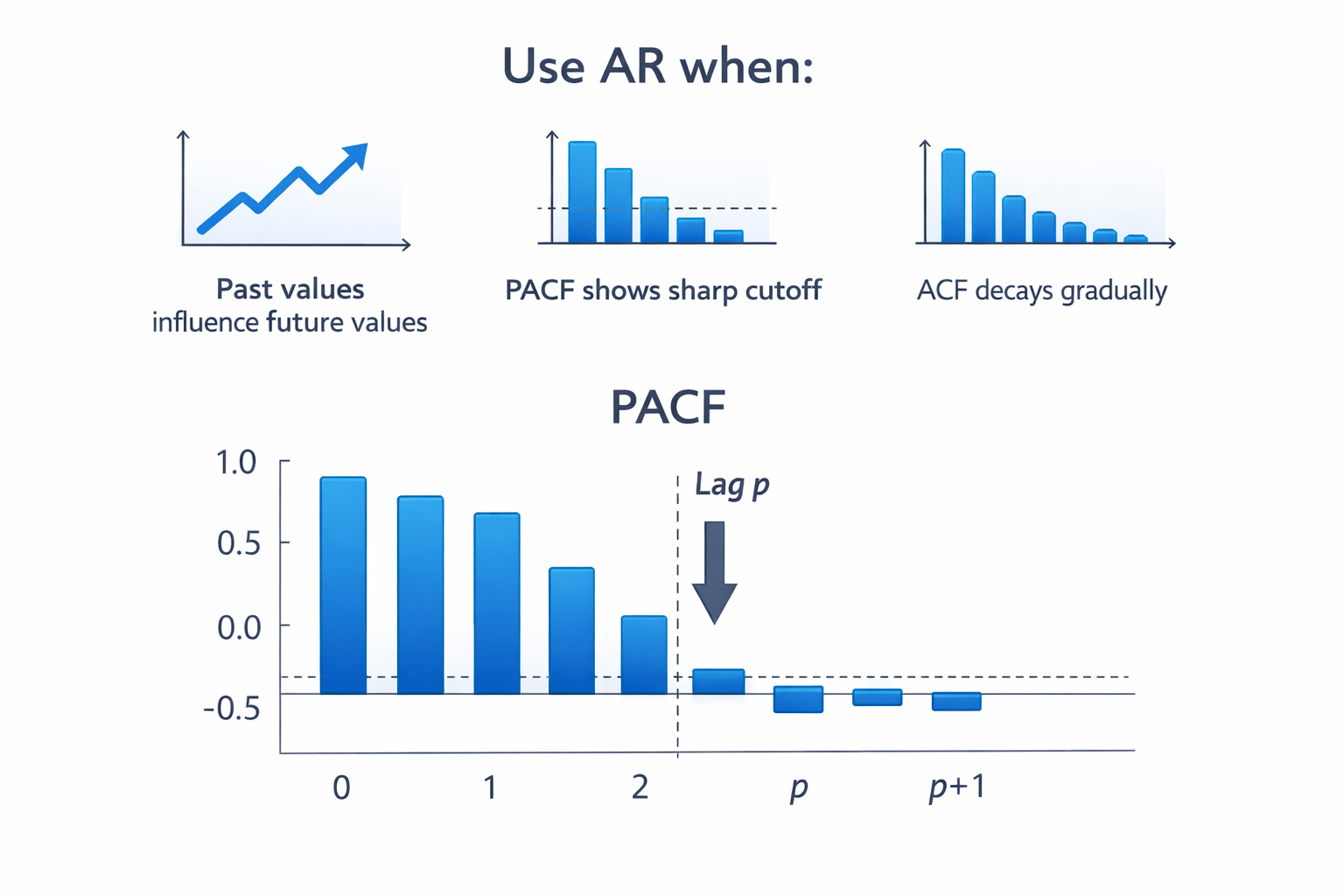

When to Use AR Model
Use AR when:
- Past values influence future values
- PACF shows sharp cutoff
- ACF decays gradually
What is an MA Model?
MA = Moving Average
Current value depends on past forecast errors.
It models the noise pattern in data.

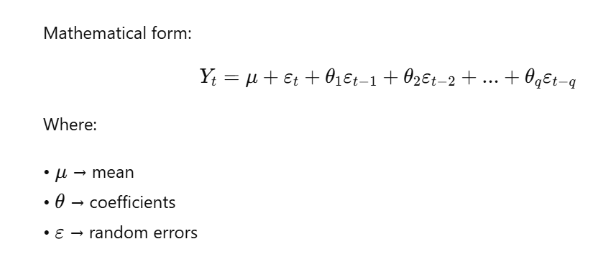

MA Model Equation

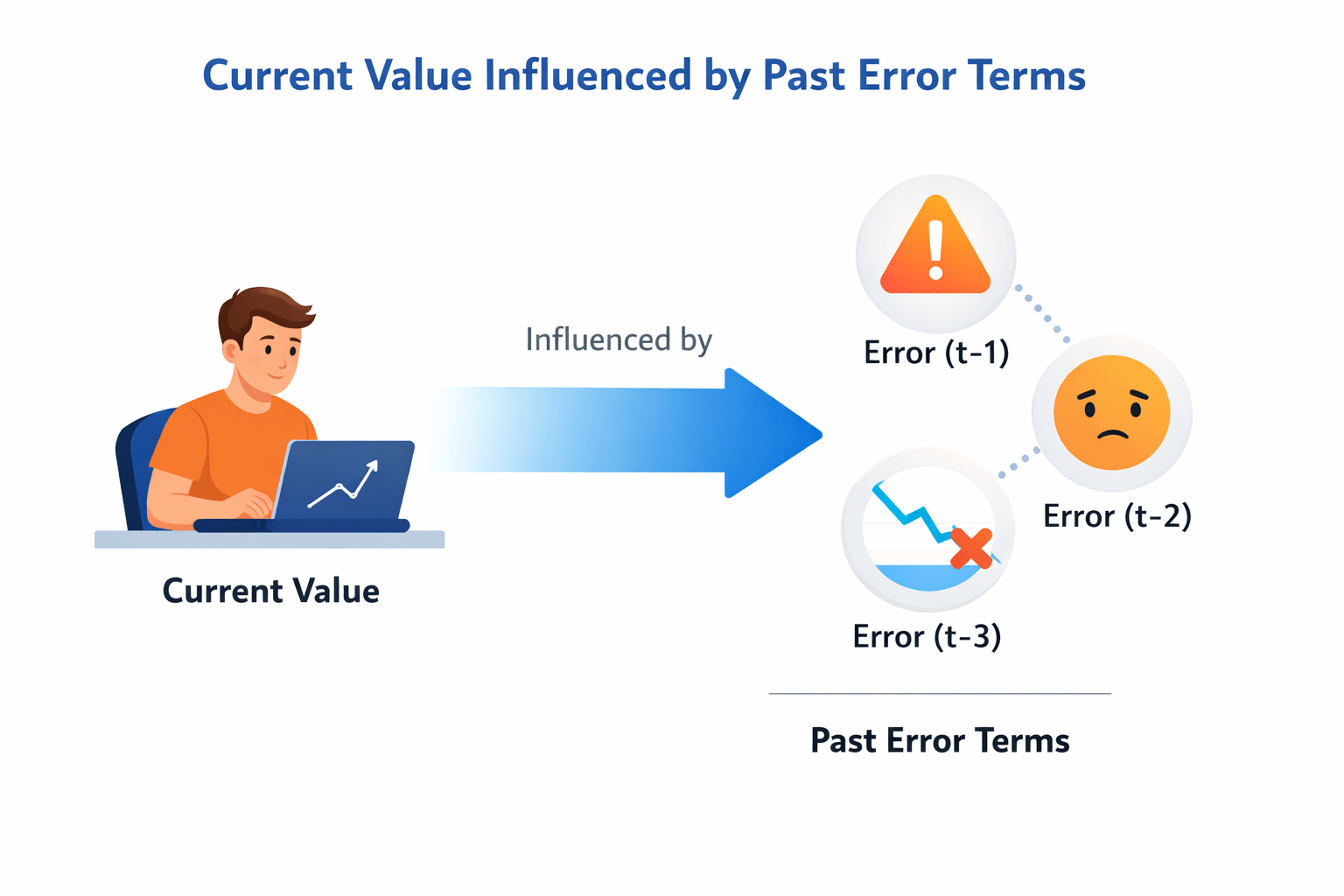

MA(q) Model Intuition
MA(1)
Current value depends on:
- current error
- previous error

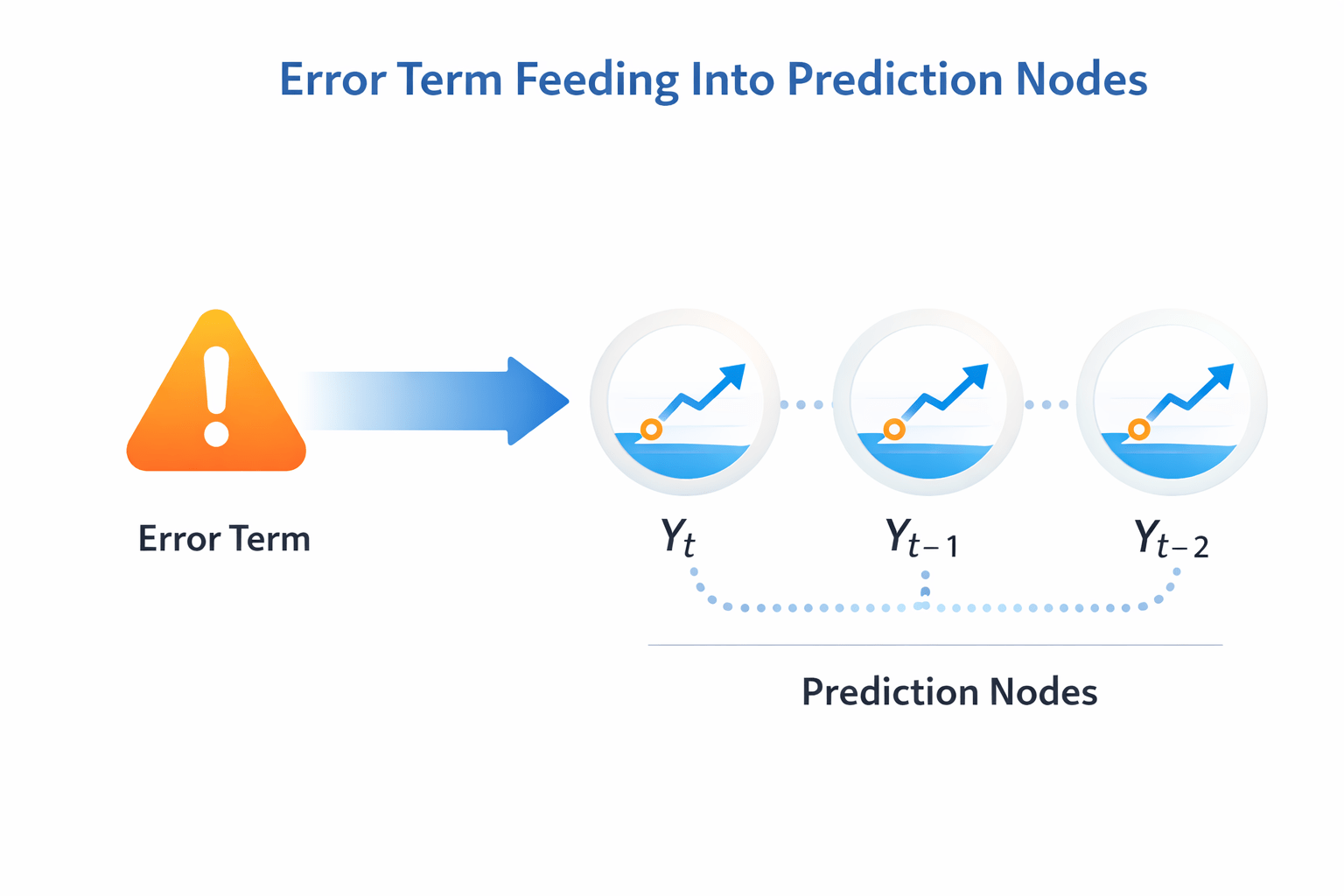

Errors influence future values for q steps.

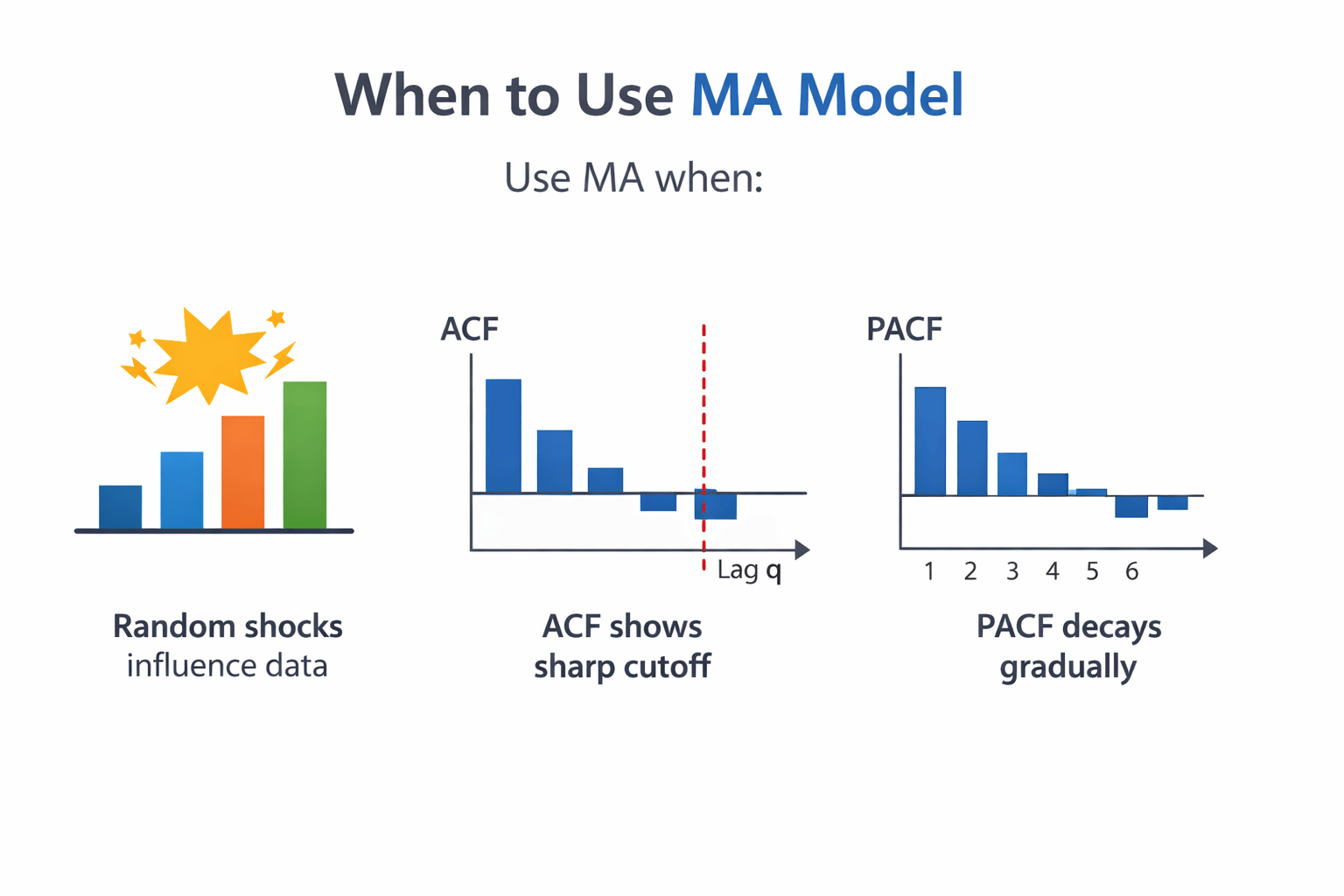

When to Use MA Model
Use MA when:
- Random shocks influence data
- ACF shows sharp cutoff
- PACF decays gradually

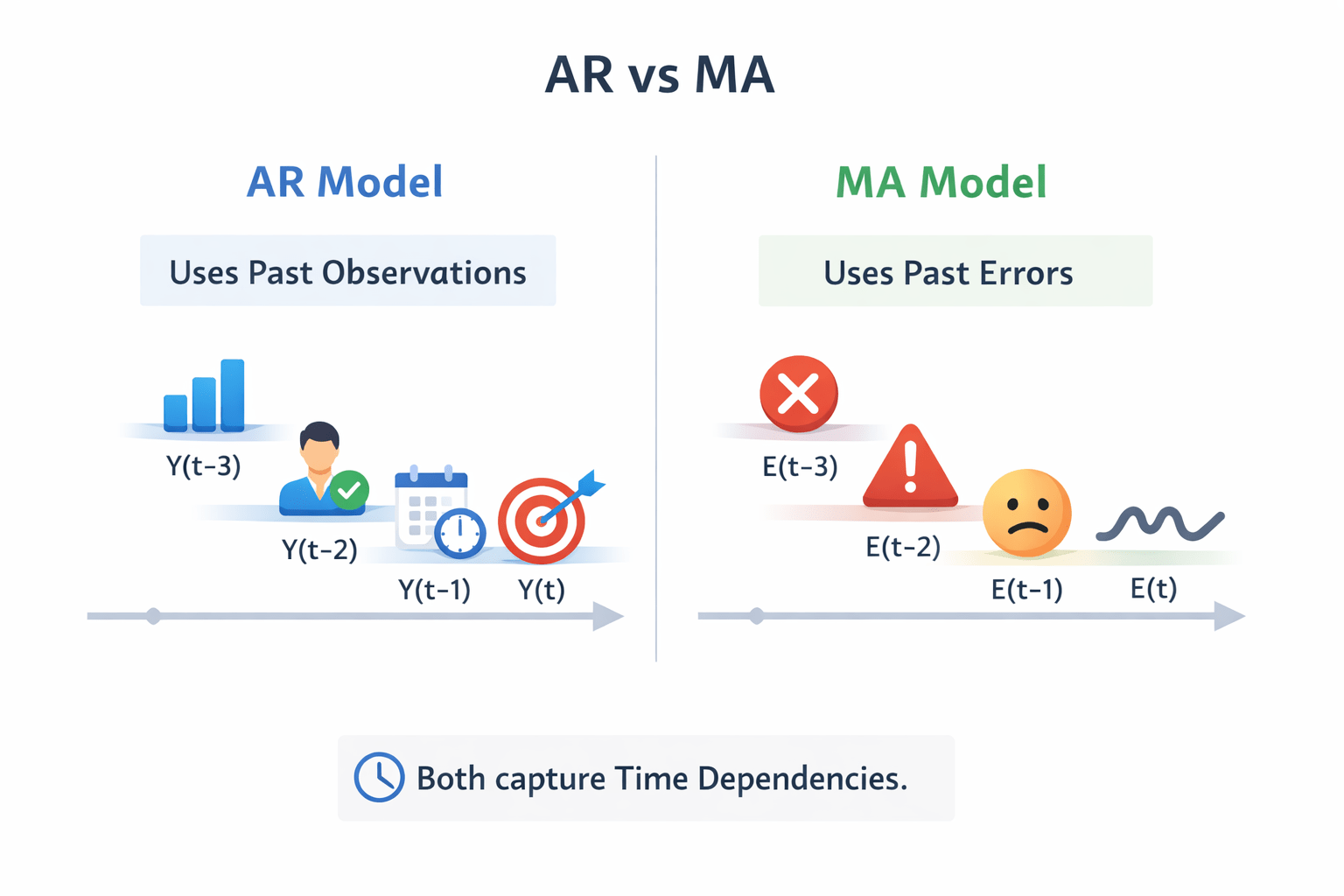

AR vs MA (Concept)
AR Model
Uses past observations
MA Model
Uses past errors
Both capture time dependencies.
AR & MA in Python
Using statsmodels
Example:
1.AR Model
from statsmodels.tsa.ar_model import AutoReg
2.MA Model
from statsmodels.tsa.arima.model import ARIMA
Summary
5
ACF & PACF help identify correct model
4
MA(q) indicates number of past errors used
3
AR(p) indicates number of past values used
2
MA models use past forecast errors
1
AR models use past observations
Quiz
Which indicator helps identify the order of an AR model?
A. ACF cut-off
B. PACF cut-off
C. Trend line
D. Moving average
Quiz
Which indicator helps identify the order of an AR model?
A. ACF cut-off
B. PACF cut-off
C. Trend line
D. Moving average
