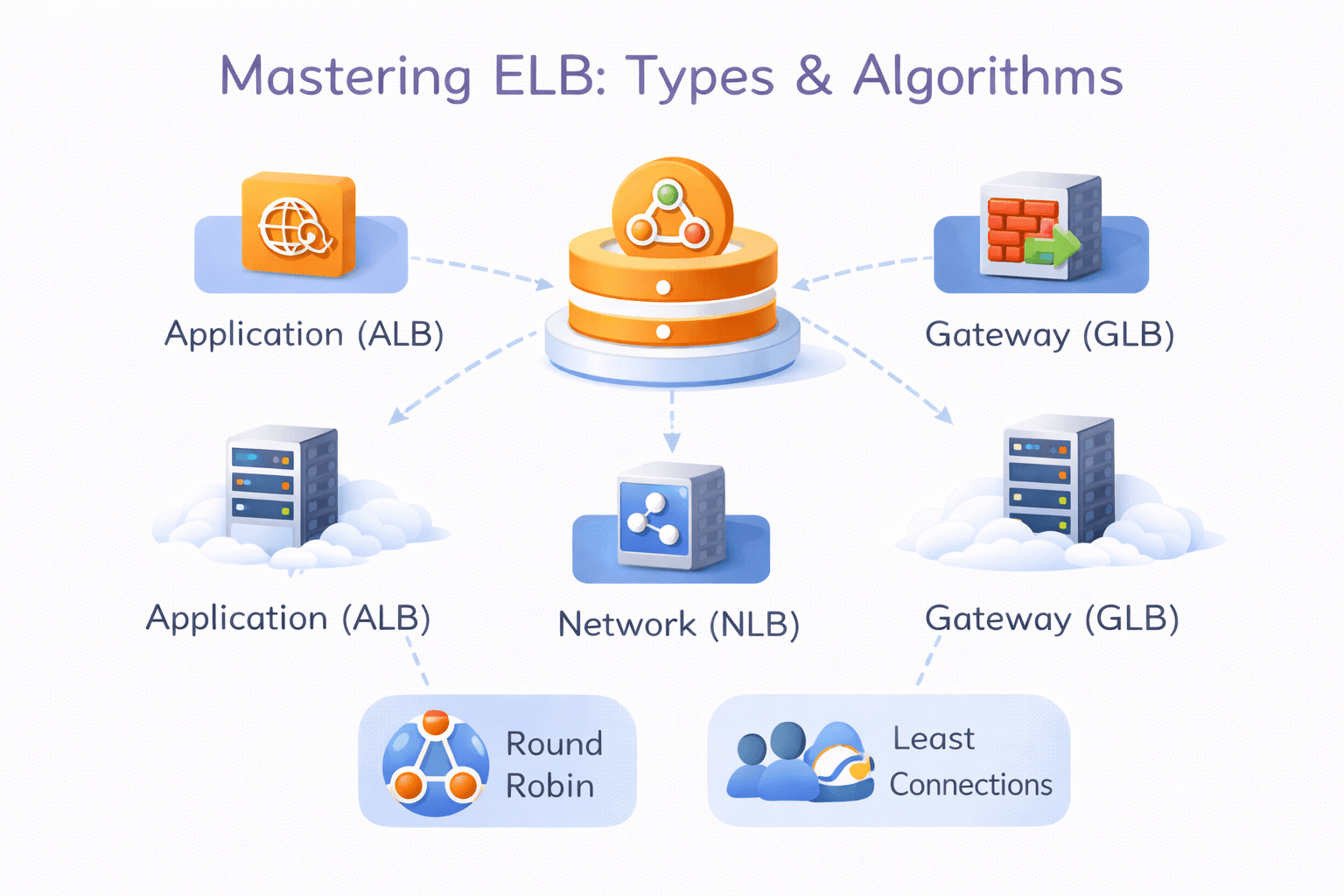

Mastering ELB: Types & Algorithms

Learning Outcome

Understand Round Robin algorithm

Differentiate between ALB, NLB, and CLB

Identify main components of ELB

Understand why ELB is needed

Explain what load balancing is

Earlier, we learned that

Elastic Load Balancing (ELB)

Elastic Load Balancing (ELB) is an AWS service that automatically distributes incoming application traffic across multiple targets to maintain high availability and scalability

Key Points

Routes traffic to EC2 instances, Lambda functions, and IP addresses

Automatically detects unhealthy servers and removes them from routing

Sends traffic only to healthy (working) servers

Improves availability, scalability, and fault tolerance

Why ELB is Important?

Elastic Load Balancer (ELB) receives incoming user traffic and forwards it to the correct backend service

These backend targets can be

EC2 instances

virtual servers running applications

Lambda functions

serverless code execution

IP addresses

on-premise servers or other services

Simple example

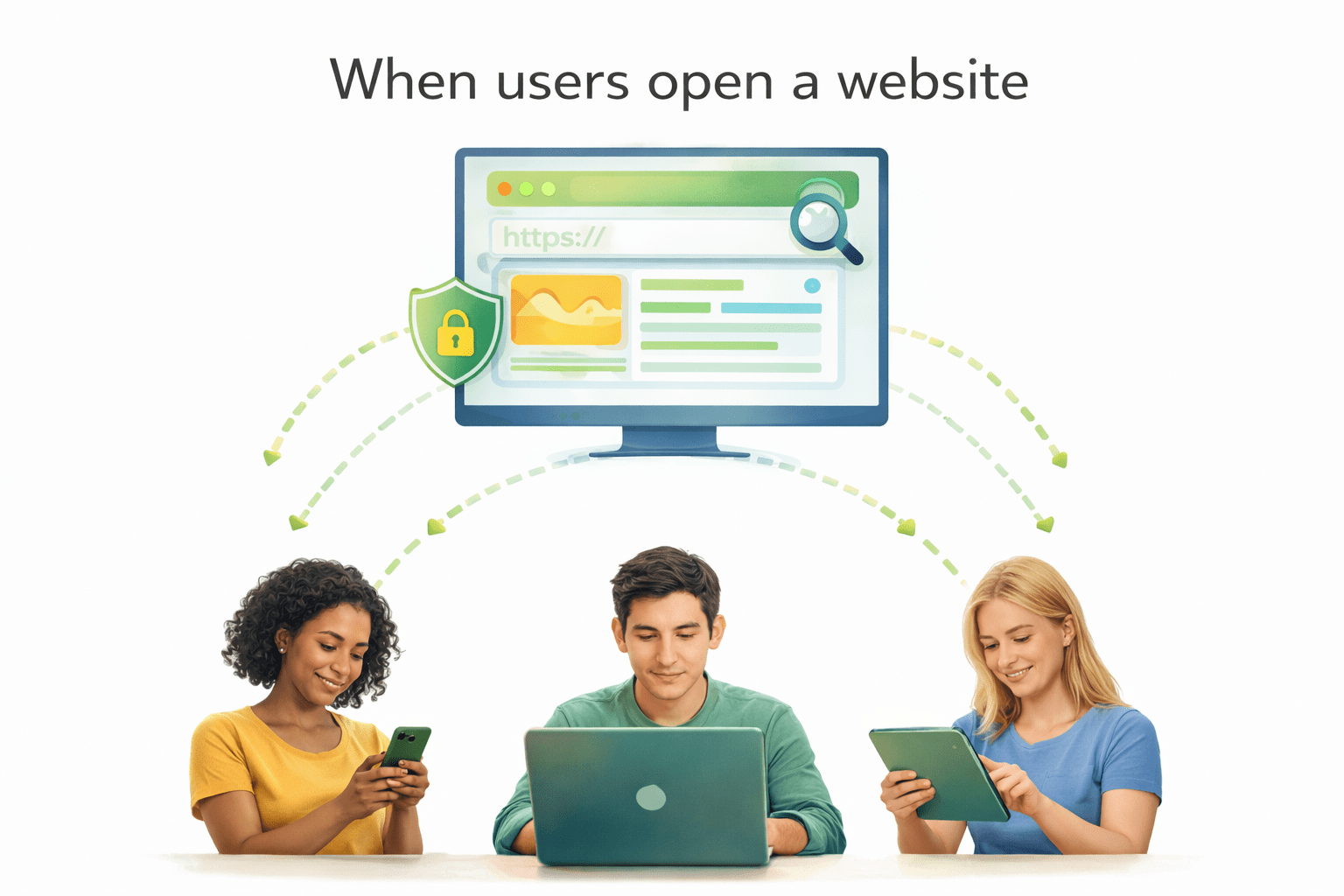

When users open a website

The ELB

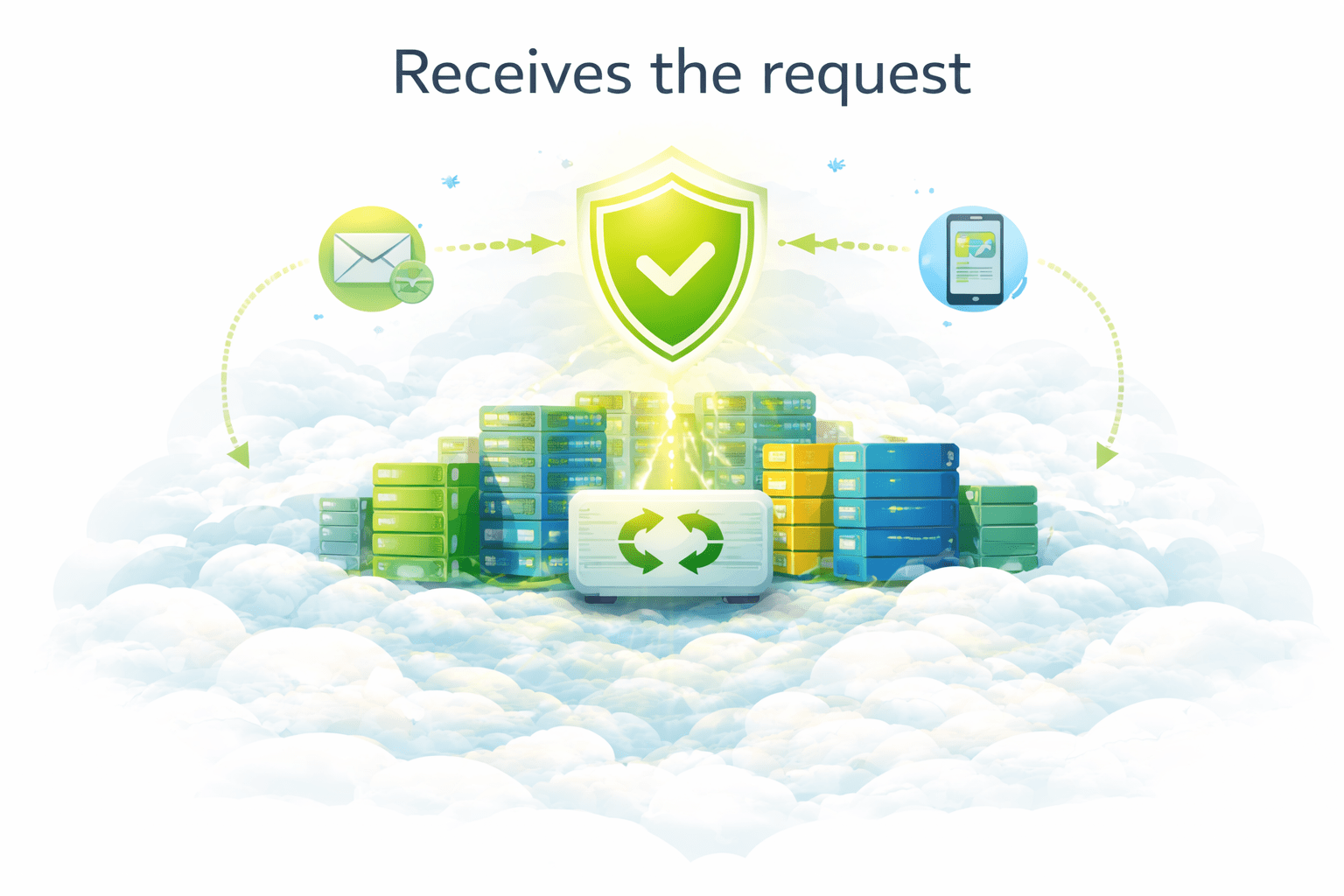

Receives the request

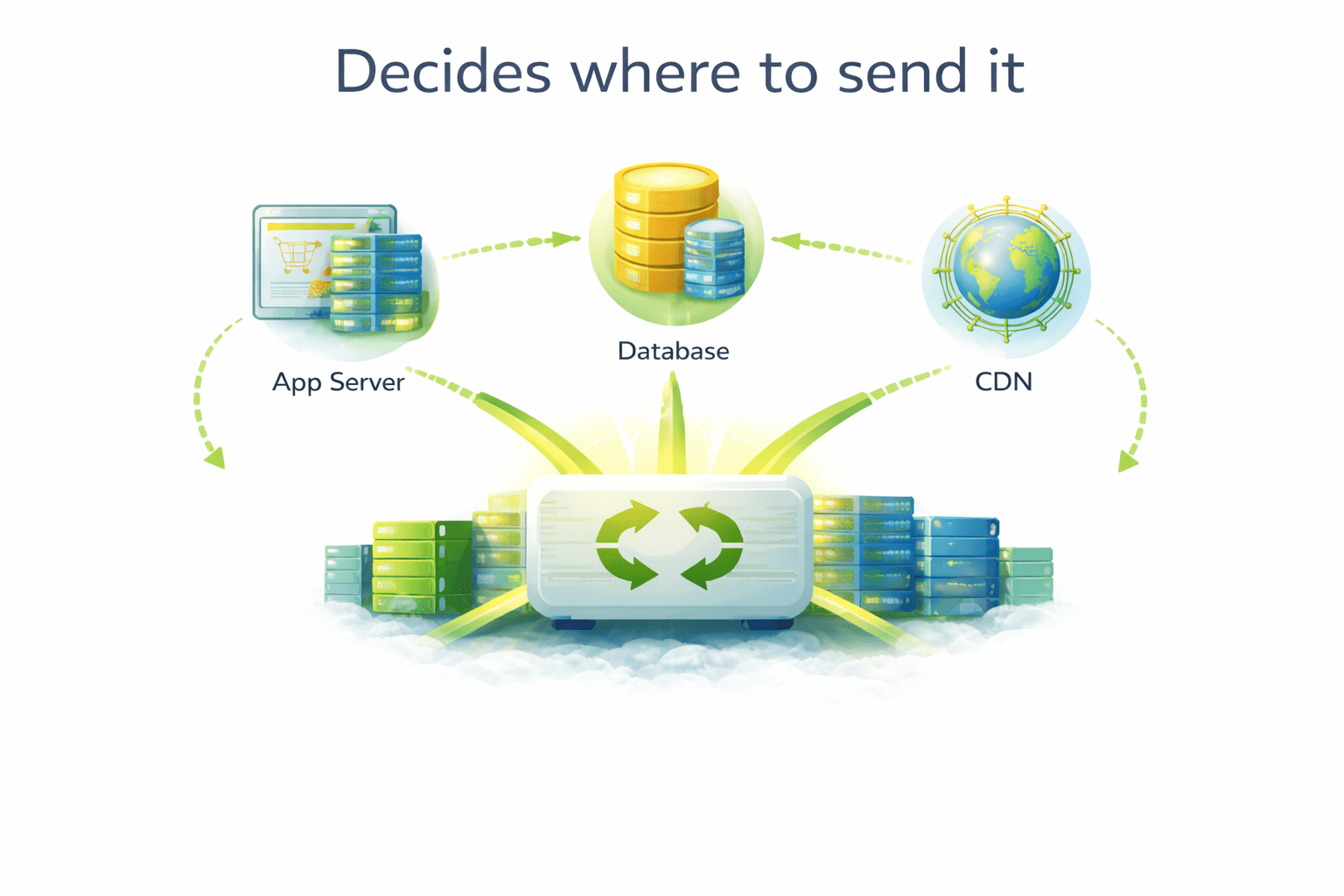

Decides where to send it

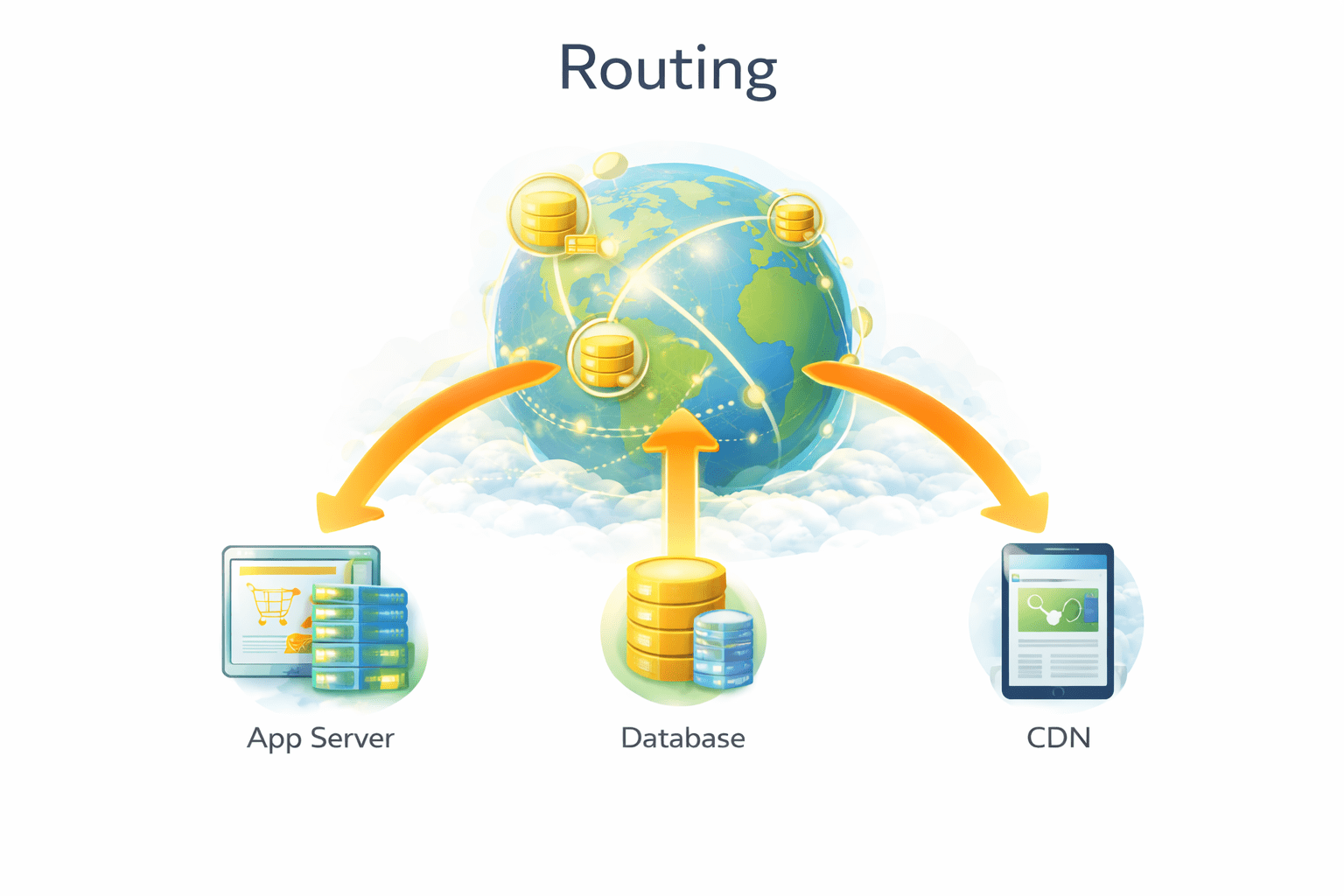

Routing

How ELB Works

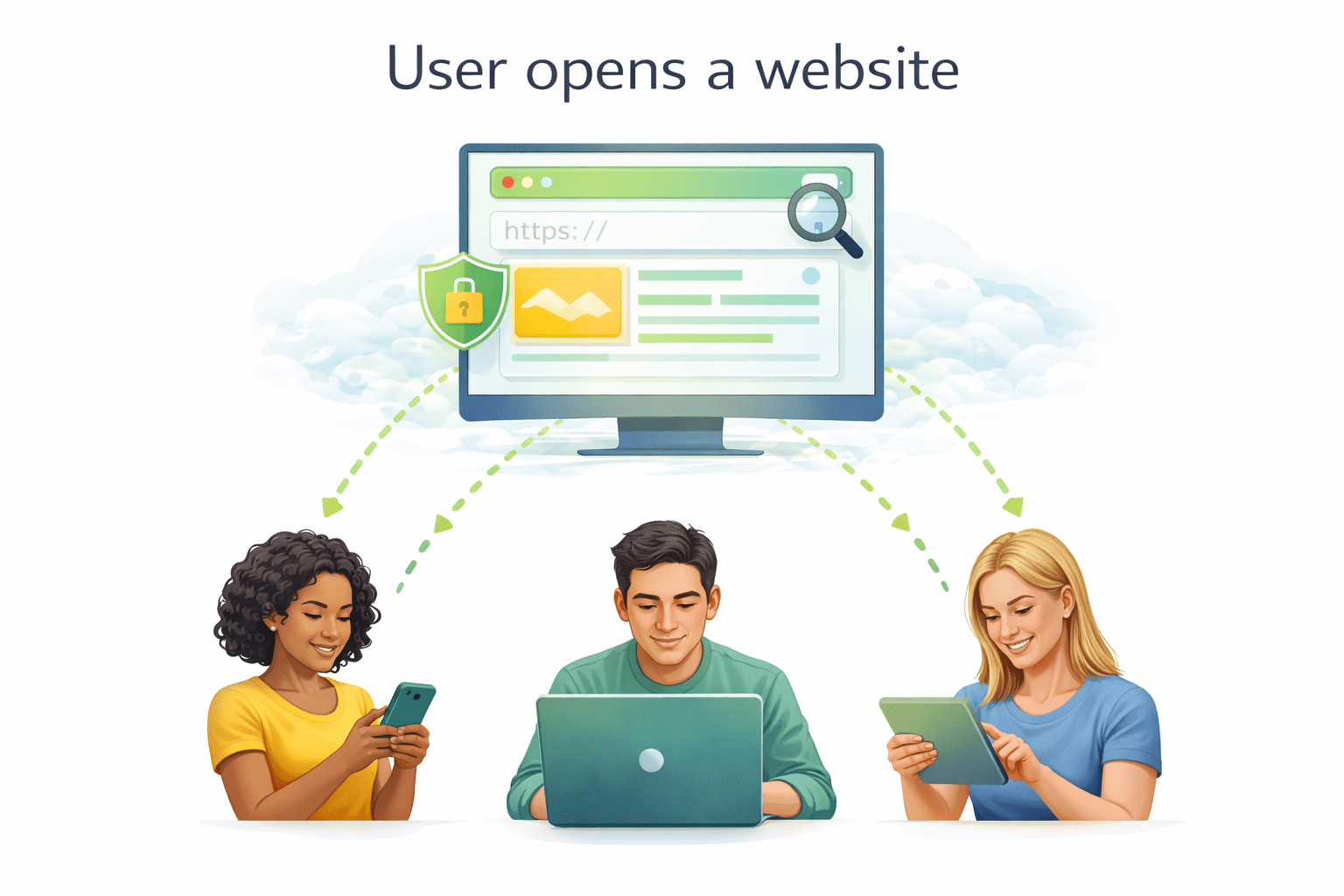

User opens a website

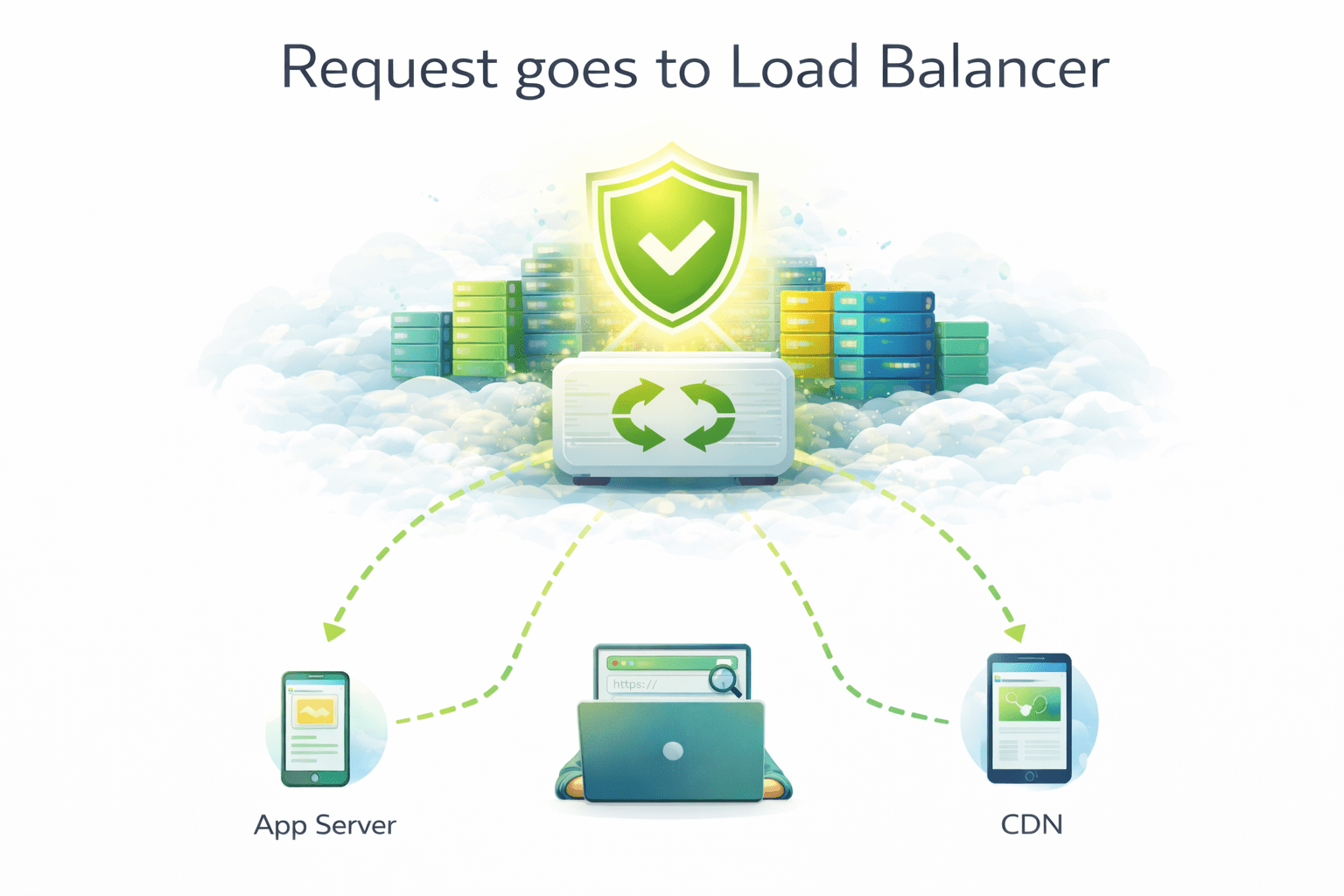

Request goes to Load Balancer

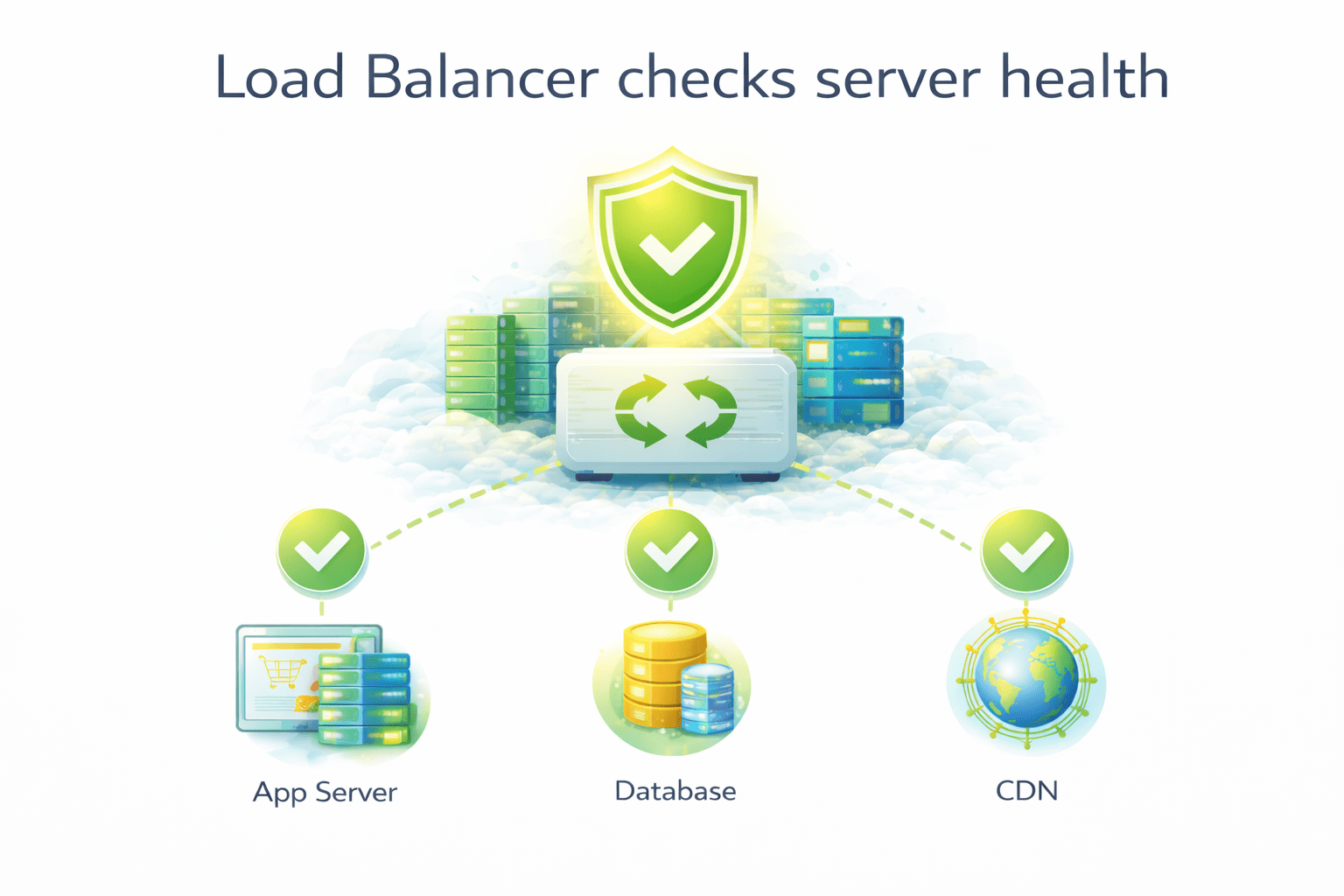

Load Balancer checks server health

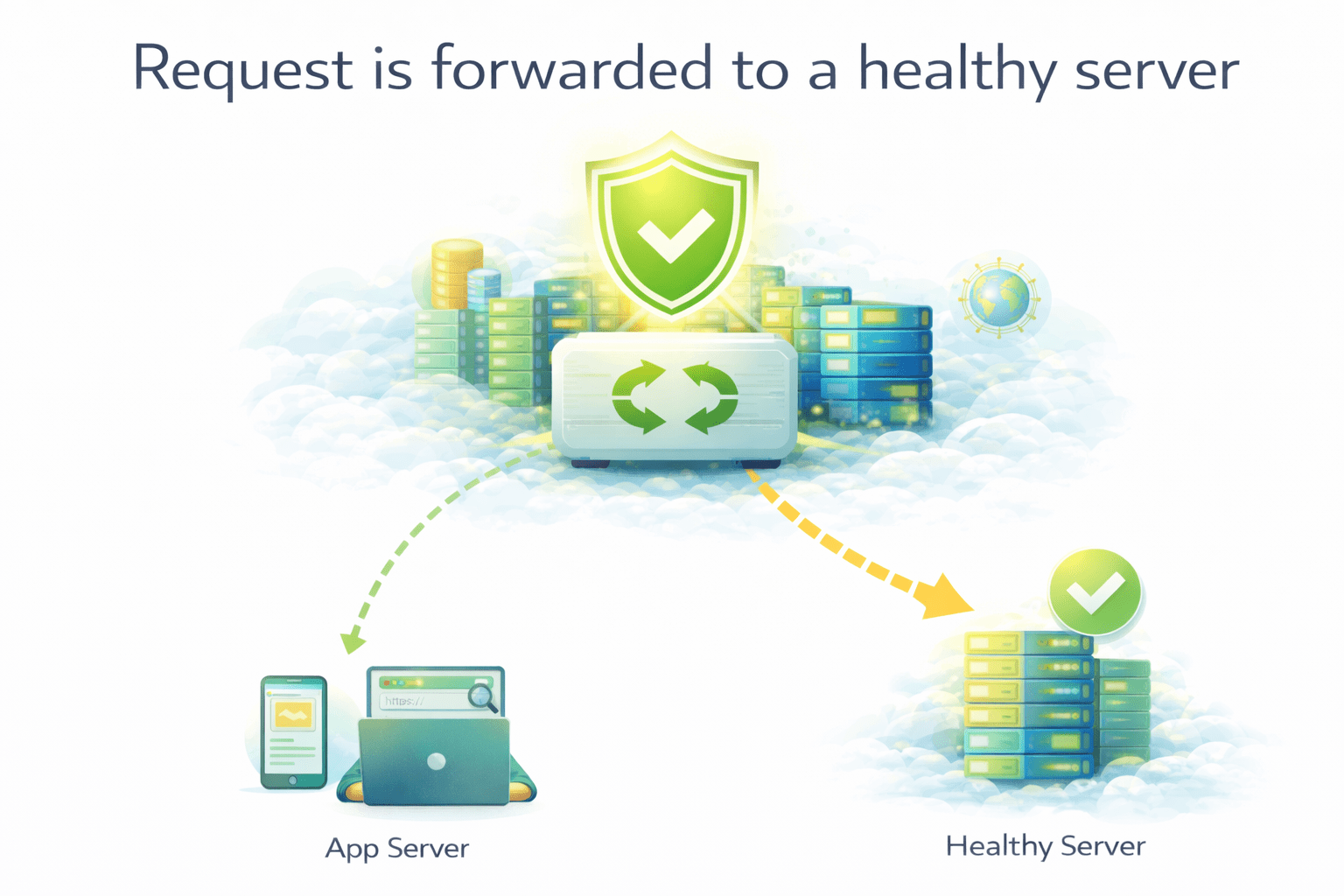

Request is forwarded to a healthy server

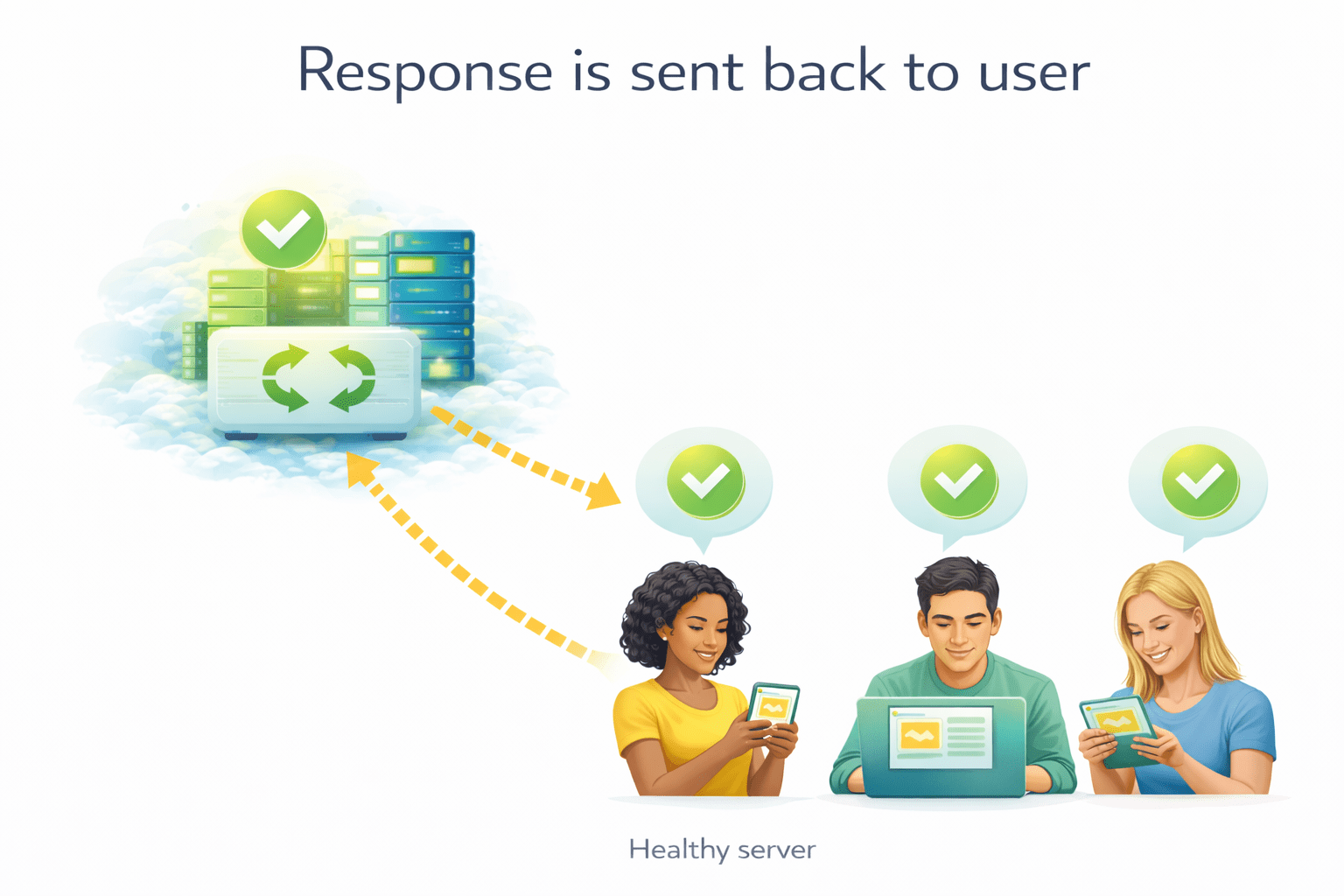

Response is sent back to user

Types of Load Balancers

Why multiple types exist?

Different applications need different handling

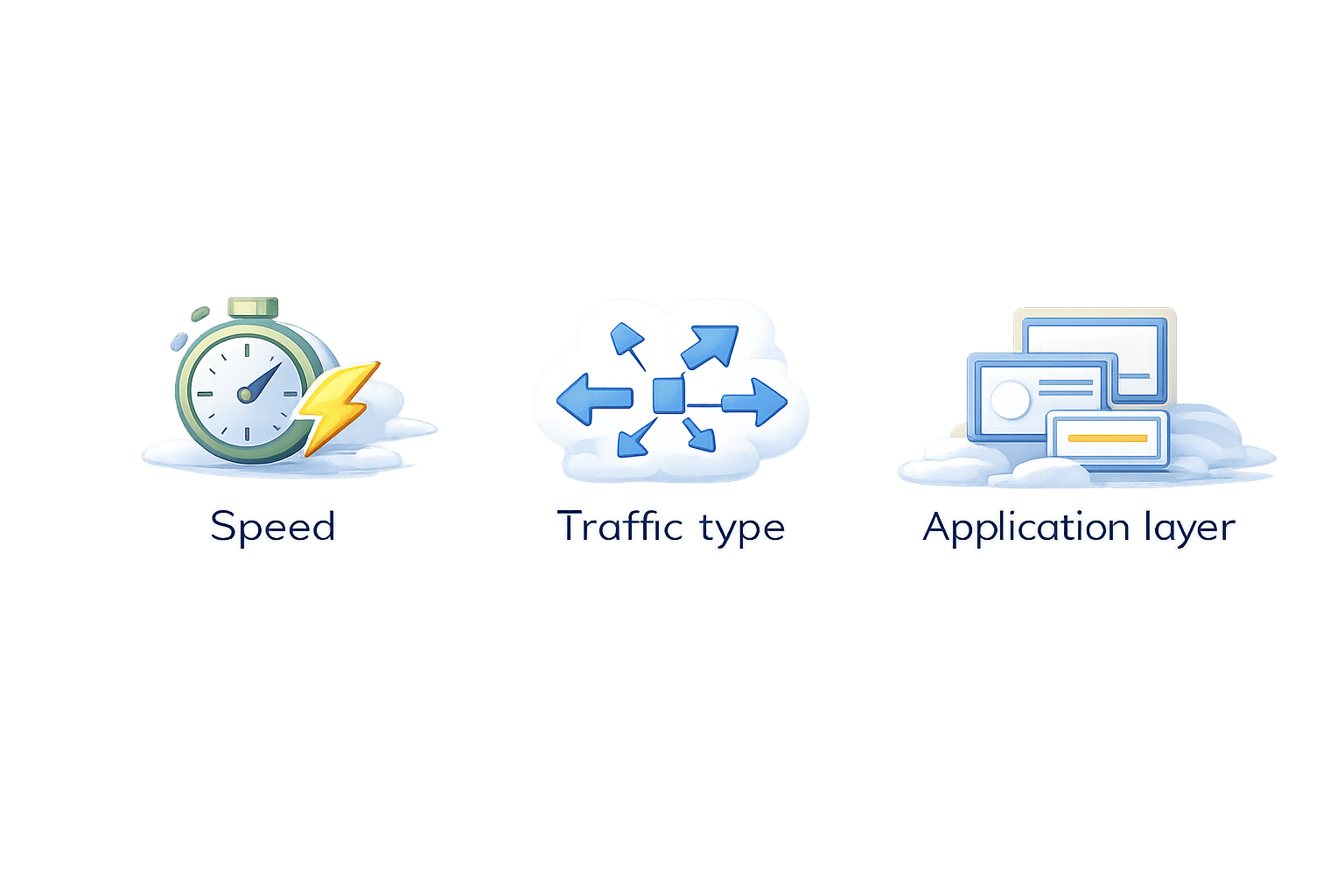

AWS provides options based on

Speed

Traffic type

Application layer

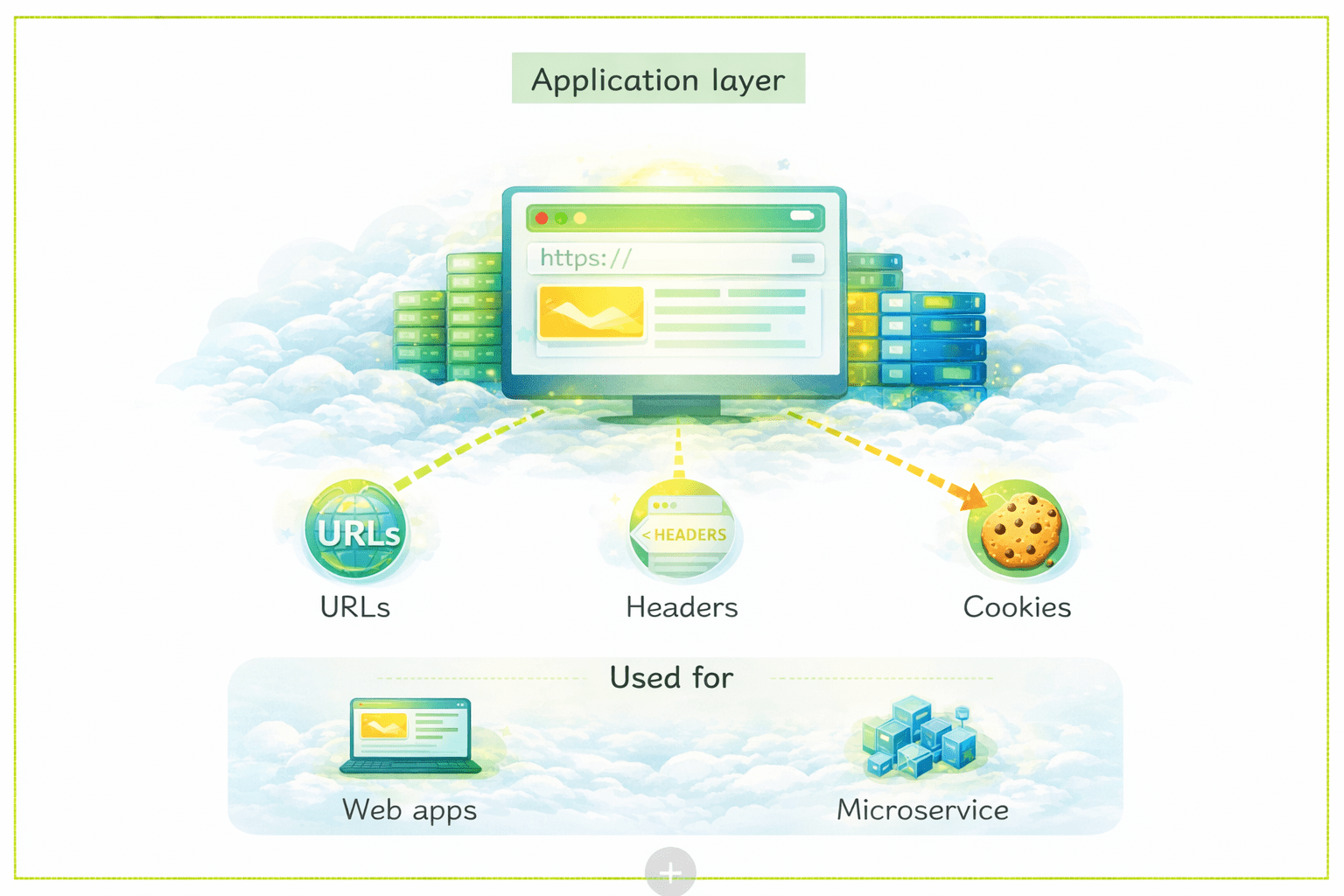

Application layer

Works at application level

Understands

URLs

Headers

Cookies

Used for

Web apps

Microservice

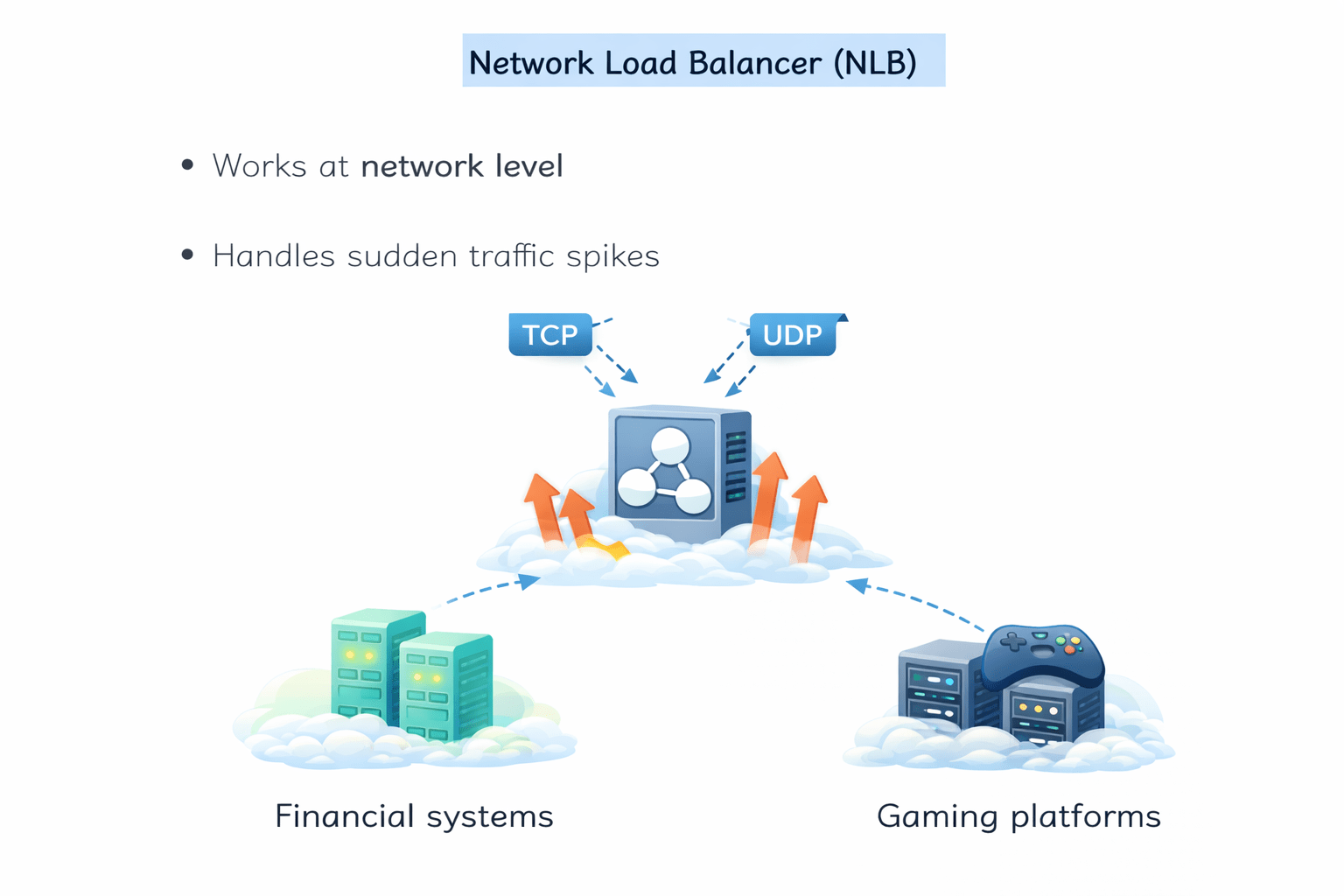

Network Load Balancer (NLB)

Works at network level
Handles sudden traffic spikes

Used for

Financial systems

Gaming platforms

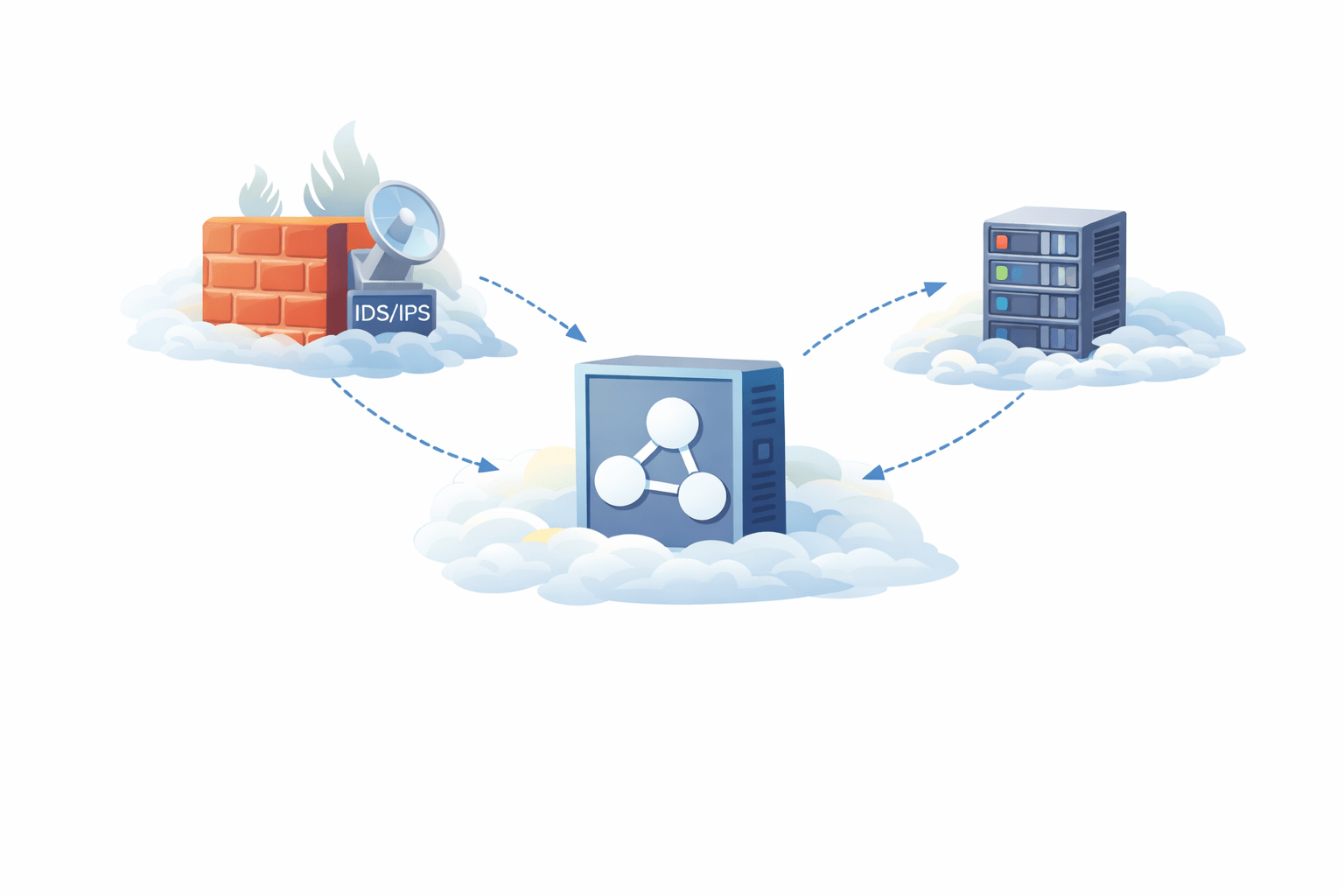

Gateway Load Balancer (GWLB)

Used to deploy, scale, and manage third-party security appliances like firewalls and IDS/IPS.

Operates at Layer 3 of the network.

Forwards traffic transparently without changing IP addresses.

Example

A company routes all traffic through a Gateway Load Balancer, which distributes it across multiple firewalls for security, scaling, and high availability.

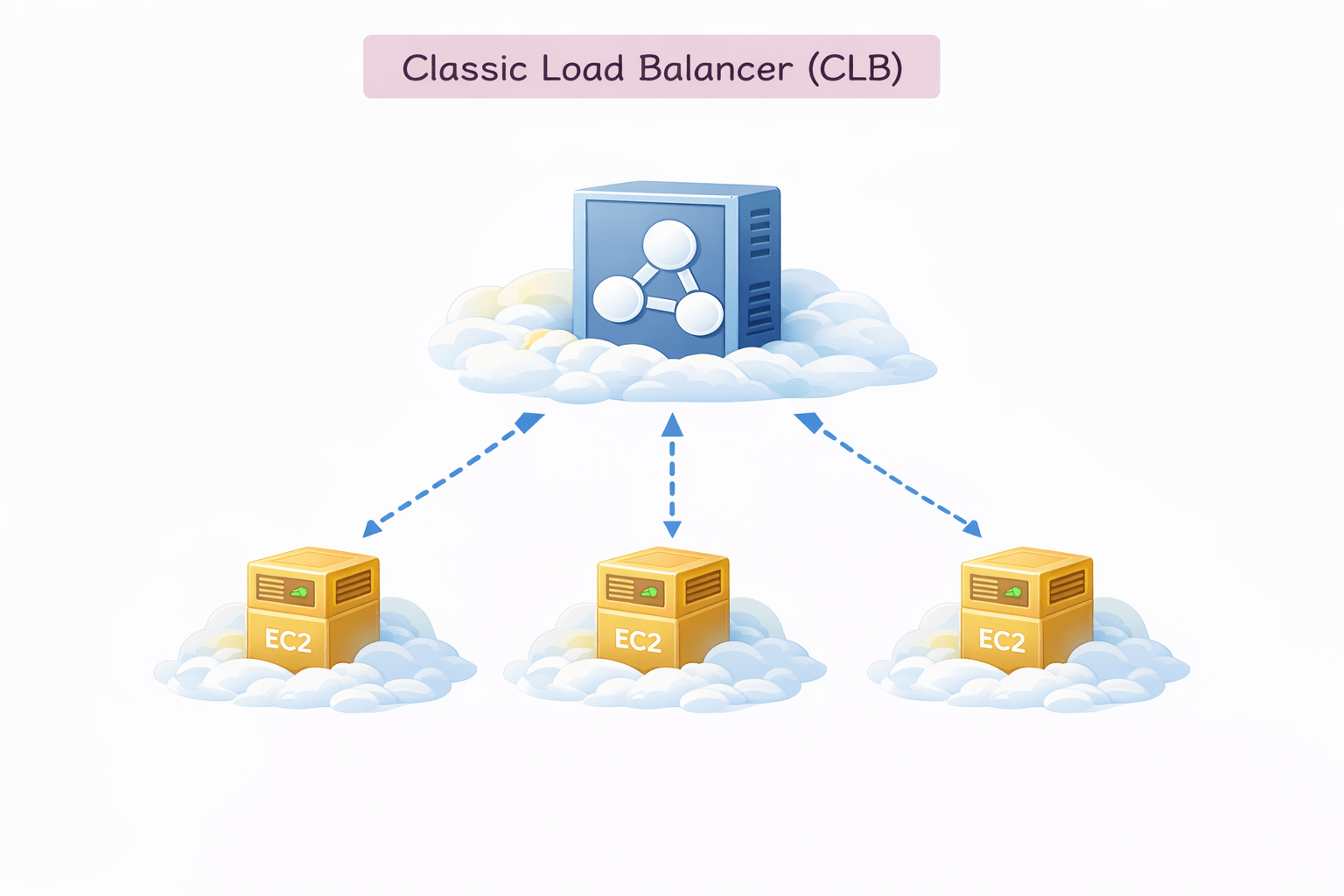

Classic Load Balancer (CLB)

Classic Load Balancer (CLB) is a legacy AWS load balancer that operates at Layer 4 and Layer 7.

It distributes traffic across multiple EC2 instances to improve availability and reliability.

Example

A legacy web app uses CLB to balance HTTP traffic, so if one instance fails, the app remains available

“BUT NOWDAYS THE USE OF THE CLASSIC LOADBALANCER ARE VERY RARE OR NOT IN USE ”

Round Robin Algorithm

Round Robin Algorithm distributes requests sequentially in a circular order so each server gets equal traffic.

Requests are sent in circular order

Every server gets equal opportunity

Very simple and fair

Does not check server load before routing

Works best when all servers have similar capacity

Commonly used in basic load balancing

insures even traffic distribution across servers

Summary

Round Robin ensures fairness

ALB, NLB, CLB serve different needs

ELB distributes traffic intelligently

Quiz

What does the Round Robin algorithm do?

A. Sends requests one by one to each server in order

B. Sends requests random

C. Blocks extra user requests

D. Sends all requests to one server
